Specifications
| Brand | Safire Smart |
| Range | E1 with Artificial Intelligence |
| Image sensor | 1/2.7“ Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560×1440) |
| Main Stream | 2560×1440,1920×1080,1280×960,1280×720 |
| Sub stream | 704×576, 640×480, 352×288 |
| Third Stream | 1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288 |
| Video Bit rate | 64Kbps ~ 8Mbps |
| Minimum illumination | Colour: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR LED | 160m (850nm) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optical Zoom | 25X |
| Digital Zoom | 16X |
| Lens | 4.8 – 120 mm |
| FOV | H: 55º – 2.4º / V: 33º – 1.4º / D: 61.5º – 2.8º |
| Range performance | W: 96 m (D), 38 m (O), 19 m (R), 10 m (I) T: 2200 m (D), 873 m (O), 440 m (R), 220 m (I) |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI |
| Advanced functions | Artificial intelligence based on human-vehicle classification on: Area Intrusion, Line Crossing, Entry Region, Exit Region. Face detection with face capture of up to 15 faces at a time. |
| Intelligent Autotracking | Intelligent tracking of humans and vehicles |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -10°~90° auto flip |
| Manual speed | Horizontal: 0.1° ~ 200°/sec, Vertical: 0.1° ~200°/s |
| Speed between Presets | Horizontal: 240° /s, Vertical: 240° /s |
| Preset positions | 360 Preset, 8 Tours, 4 Patrols |
| Internal memory | MicroSD card, Max 256 GB |
| Audio | 1 Input / 1 Output |
| Audio Compression | G.711 A/U |
| Audio bit rate | 64 Kbps |
| Alarms | 1 Input / 1 Relay |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote access | Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 3A, PoE IEEE802.3at |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | IP66 / Surges 6000V |
| Dimensions (without bracket) | 268 mm (H) x 173(Ø) mm |
| Weight (without bracket) | 2100 g |
Description
- Safire Smart
- Range E1 with Artificial Intelligence

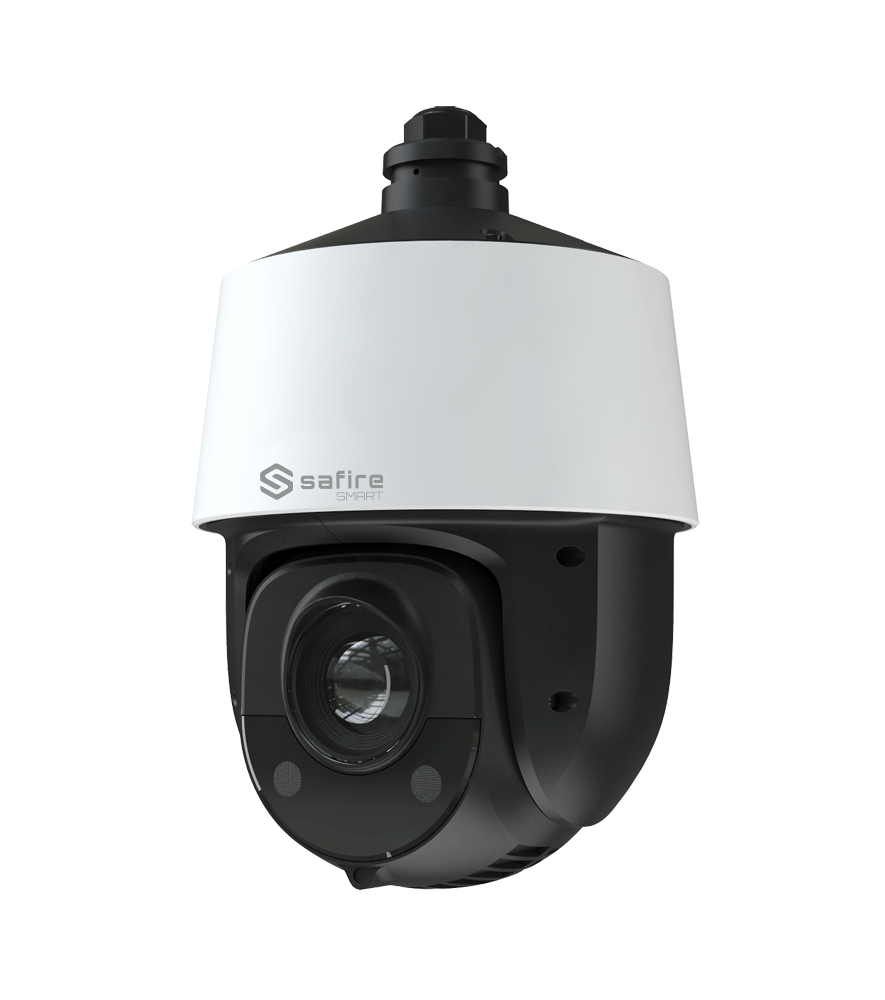

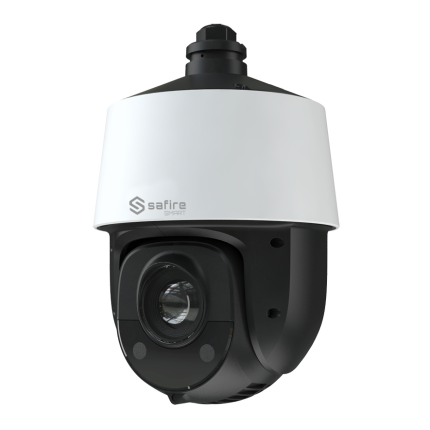

- IP PTZ camera
- 1/2.7″ Progressive Scan CMOS
- 4 Megapixel (2560×1440)
- 25X Optical zoom
- 4.8-120 mm Lens
- 0 Lux
- IR Range 160 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Artificial Intelligence for human and vehicle classification
- Intelligent autotracking, tracking of humans and vehicles
- Audio
- Alarm
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Weatherproof IP66
- Bracket included
