Specifications
| Brand | Hikvision |
| Range | SOLUTIONS |
| Inputs for IP cameras | LAN port up to 32 channels |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 8K, 1xHDMI 4K, 1xVGA (simultaneous HDMI 8K and VGA, HDMI 8K and HDMI 4K standalone) |
| Display resolution | HDMI 8K: 7680×4320, 3840×2160, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 HDMI 4K: 3840×2160, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 When the HDMI resolution 8K is 8K, the maximum HDMI resolution 4K is 1080p |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Bidirectional audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Total bandwidth | 320 Input Mbps / 400 Output Mbps |
| Stream Type | Video / Video + Audio |
| Main Stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 2CH@32MPx 2CH@24Mpx 4CH@12MPx 8CH@8MPx 16CH@4MPx 32CH@1080p * When “Ultra HD resolution” mode is enabled the NVR supports up to 8 channels at 32 Mpx/24 MPx in recording and preview |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection Available in all channels. |
| Intelligent functions | The equipment has 4 modes of operation: AcuSense, Facial Recognition, Video Structure and Dropping Objects from Buildings. No more than 2 modes can be enabled at the same time. |
| AcuSense | DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available up to 24 channels with 8 Mpx per channel |
| Facial recognition | Up to 16CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Image comparison alarm on up to 32 channels. Storage 16 Libraries with up to 100.000 faces |
| Video Structure | Characteristic analysis (analysis of clothing, hat, backpack, etc.) Up to 12CH with a maximum resolution of 8 Mpx. Face image comparison alarm in up to 16 channels. Storage 16 Libraries with up to 100.000 images. |
| Falling objects | Detection of falling objects from buildings. Up to 16CH with a maximum resolution of 8 Mpx. |
| Recognition of ANPR license plates | Available on all channels with license plate recognition cameras. Characteristics of the license plate: Number, color, type. Vehicle characteristics: brand, color, type |
| Alarms | 16 Inputs / 8 Outputs |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal memory | 4 HDD SATA 3.5″ of up to 14 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear side / 2 x RJ45 10/100M (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x e SATA |
| Power | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 71 (H) x 445 (W) x 400 (D) mm / 5 Kg (without HDD) |
Description
- Hikvision
- SOLUTIONS range

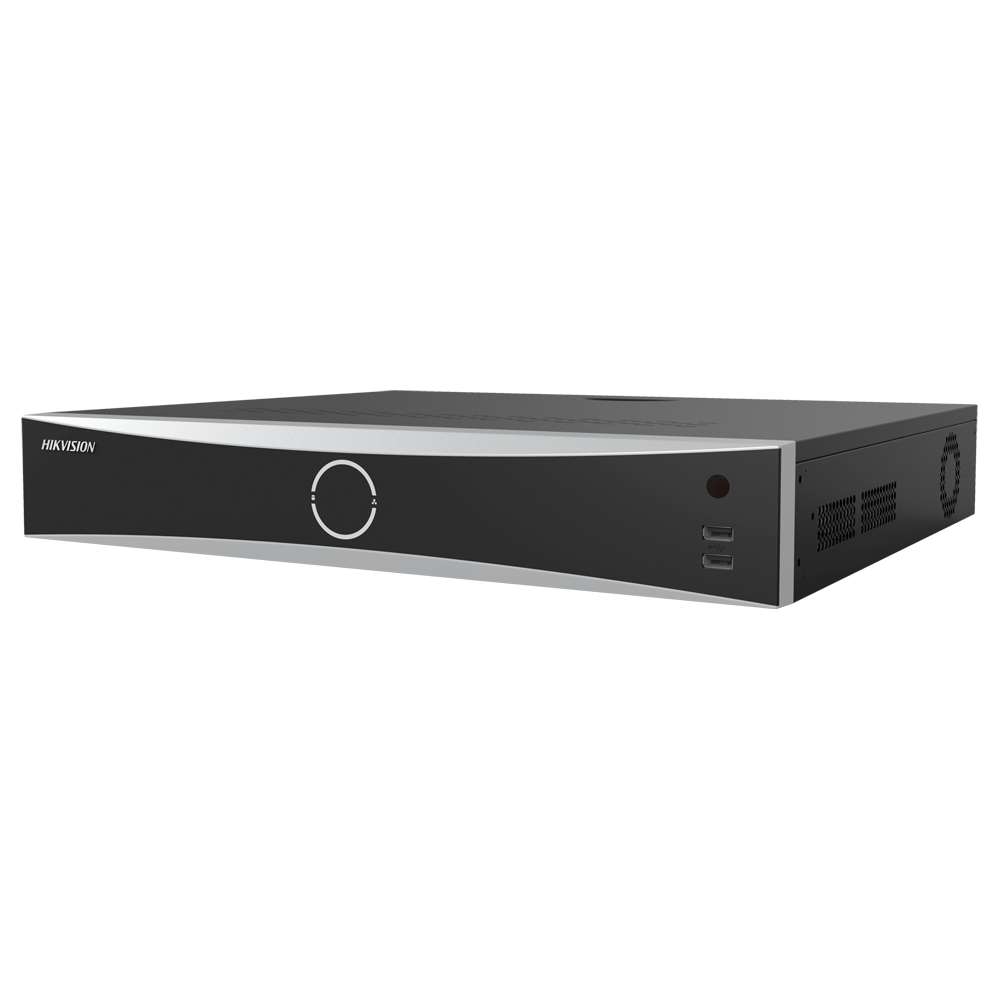

- DeepInMind NVR Recorder for IP cameras
- 32 CH
- Supported incoming bandwidth 320 Mbps
- Maximum resolution 32 Mpx
- Compression H.265+/H.265/H.264+/H.264
- HDMI 8K, HDMI 4K and VGA output
- Motion detection 2.0 all channels
- Facial recognition in up to 16 channels
- Storage of up to 100.000 face images
- Comparison by match level or by stranger
- AcuSense, false alarm filter for vehicles and persons up to 24 channels
- Video Structure, feature analysis up to 12 channels
- Detection of falling objects from buildings
- License plate recognition
- Alarms
- Audio
- POS
- RS-485
- RS-232
- IP Dual Stream Access
- Mouse
- Space for 4 HDD
- WEB, CMS and Smartphone interface
- ONVIF Compatible
