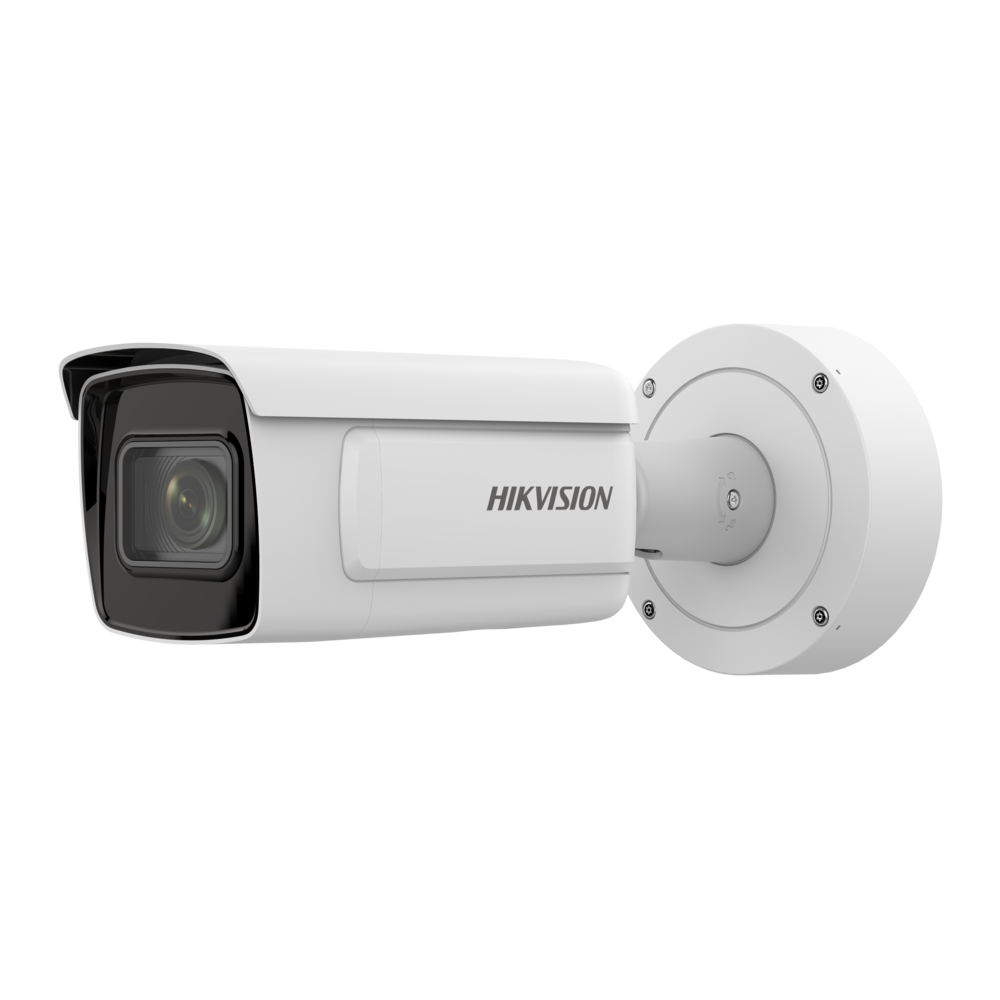

Specifications
| Brand | HIKVISION |
| Range | SOLUTIONS |
| Image sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840×2160) |
| Main Stream rate | 50 fps (3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (704×576, 640×480) |
| Third Stream Rate | 25 fps (1920×1080, 1280×720, 704×576, 640×480) [%VAR%] |
| Fourth Stream | 25 fps (704×576, 640×480) |
| Fifth Stream | 25 fps (704×576, 640×480) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Video output | Composite video output (for debugging only) |
| Lens | Motorized varifocal 2.8~12 mm |
| Viewing Angle (FOV) | H: 112.3~41.2°, V: 58~23.1°, D: 137.3°~47.3° |
| Range performance | Wide: 87 m (D), 34.5 m (O), 17.4 m (R), 8.7 m (I) Tele: |
| Minimum illumination | Colour: 0.002 Lux @ (F1.2, AGC ON) Black and White: 0 Lux with Infrared |
| Infrared lighting | IR LEDs range 50 m |
| Shutter time | 1 s to 1/100,000 s |
| Day / Night | Removable mechanical ICR filter Blue glass module to reduce ghosting |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI (4 regions per each stream), Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Multi-target detection | Supports simultaneous human body, face and vehicle detection and capture. Gets 7 facial features, Obtains 13 characteristics of the human body. Gets 2 vehicle features. Supports counting of the number of targets crossing the line by type, including human body, non-motorized vehicle, motorized vehicle. Supports dynamic mosaic mask |
| Face capture | Detects up to 120 faces simultaneously, captures up to 40 face images per frame simultaneously, and loads up to 10 face images per second, Supports left and right rotation from -60° to 60°, and up and down tilt from -30° to 30°. Loads images of faces with background and foreground faces. Supports better shooting and rapid fire for capture mode. Supports dynamic mosaic mask. Get 7 face expressions. |
| Face comparison | Up to 10 face libraries. 30.000 faces for each library. 150.000 faces in total. Supports encryption of face libraries. |
| AcuSense | DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region |
| People count | Supports multidimensional people counting. Supports counting, displaying and exporting data of flow of people entering, exiting and passing through (data is stored in flash memory). Supports real-time loading and statistical cycle loading. Supports generation of daily, weekly, monthly or annual reports. Supports dynamic de-duplication based on facial image comparison, and can filter out the target with the same custom facial images, the same attributes, or filter out repeated invalid targets within the set time interval. Supports de-duplication of facial features. Supports replenishment of people flow data. |
| Queue management | Supports up to 8 detection regions, and independent arming and linking scheduling. Supports 2 detection modes: queues of people by region and detection of waiting time. Generates reports to compare the efficiency of different queues and show the changing status of a queue . Supports export of raw data for further analysis. Supports real-time data loading and scheduled data loading. Queue of people by region: supports 4 alarm trigger conditions, such as greater than a threshold, less than a threshold, equal to a threshold, not equal to a threshold. Timeout detection: support 1 alarm activation condition, including greater than a threshold. |
| Heat map | A graphical description of the visits (calculating the number of people or the time spent) in a configured area. Two types of reports are available, spatial heat map and temporal heat map line graph. |
| Hull detection | Detects up to 30 human targets simultaneously. Supports up to 4 regions. |
| People count by region | Supports up to 8 detection regions, and independent arming and linking scheduling Supports 3 detection modes: detection of people density, detection of of people, detection of exceptions by waiting time. Supports parameter settings: alarm times per exception, alarm interval, delay of first alarm. Supports real-time people number search. People density detection: supports schedule load, number of people load, congestion level load, etc Exception detection of the number of persons: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A must be less than threshold B). Timeout exception detection: supports 3 alarm trigger conditions, which include greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A must be less than threshold B). |
| Absenteeism detection | Supports up to 8 detection regions, and independent arming and linking scheduling. Supports 2 detection modes: absence detection (absenteeism), detection of interruption or resumption of tasks. Supports parameter settings: person on task, duration of absence. |
| Alarms | 2 inputs / 2 outputs |
| Audio | 1 input / 1 output |
| Audio type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 a 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal memory | Slot for micro SD card up to 1TB |
| Network interface | Ethernet 10/100/1000M BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 1190 mA / 14.28 W max. / PoE+ IEEE802.3at |
| Power supply output | DC 12 V / 100 mA |
| Degree of protection | Waterproof IP67, vandal-proof IK10, NEMA 4X |
| Corrosion protection | NEMA 4X (NEMA 250-2018) |
| Material | Aluminium alloy |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | Ø 140 mm x 351 mm (D) |
| Base dimensions | Ø base 140 mm / Ø entre tornillos 96 mm / 4 tornillos |
| Weight | 1950 g |
Description
- Hikvision
- SOLUTIONS range
- IP camera
- 1/1.8″ Progressive Scan CMOS
- 8 Megapixel (3840×2160)
- 2.8~12 mm Varifocal Motorised Lens
- 0 Lux
- IR Range 50 m
- IR Cut
- Compression H.265+ / H.265 / H.264+ / H.264
- 5 video streams for multiple uses
- Motion detection 2.0
- AcuSense, false alarm filter for vehicles and people
- Face capture
- People count
- People count by region
- Queue management
- Heat map
- Hull detection
- Absenteeism detection
- Alarms
- Audio
- WDR (120 dB)
- 3D-DNR
- RJ-45 10/100M BaseT
- RS-485 (half duplex)
- PoE+ IEEE802.3at
- Internal storage Micro SD card up to 1 TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Power supply output DC 12 V
- Weatherproof IP67
- Vandal proof IK10
- NEMA anti-corrosion protection 4X
