Specifications
| Brand | HIKVISION |
| Range | PRO |
| Image sensor | 1/3″ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Main Stream rate | 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280×720, 640×480, 640×360) |
| Third stream rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) [%VAR%] |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 102.7°, V: 55.2°, D: 122.5° |
| Range performance | 64 m (D), 26 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum illumination | Ultra Low Light (Powered by DarkFighter) Colour: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Intelligent functions | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Face Capture | Yes |
| Internal memory | MicroSD card slot up to 512 GB |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output Integrated microphone |
| Audio type | Mono / 2 channels / stereo |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3) |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 5.5 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67, Vandal-proof IK08 |
| Material | Base: Aluminium Cover: Plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 57.4 mm (H) |
| Weight | 380 g |
Description
- Hikvision
- PRO Range

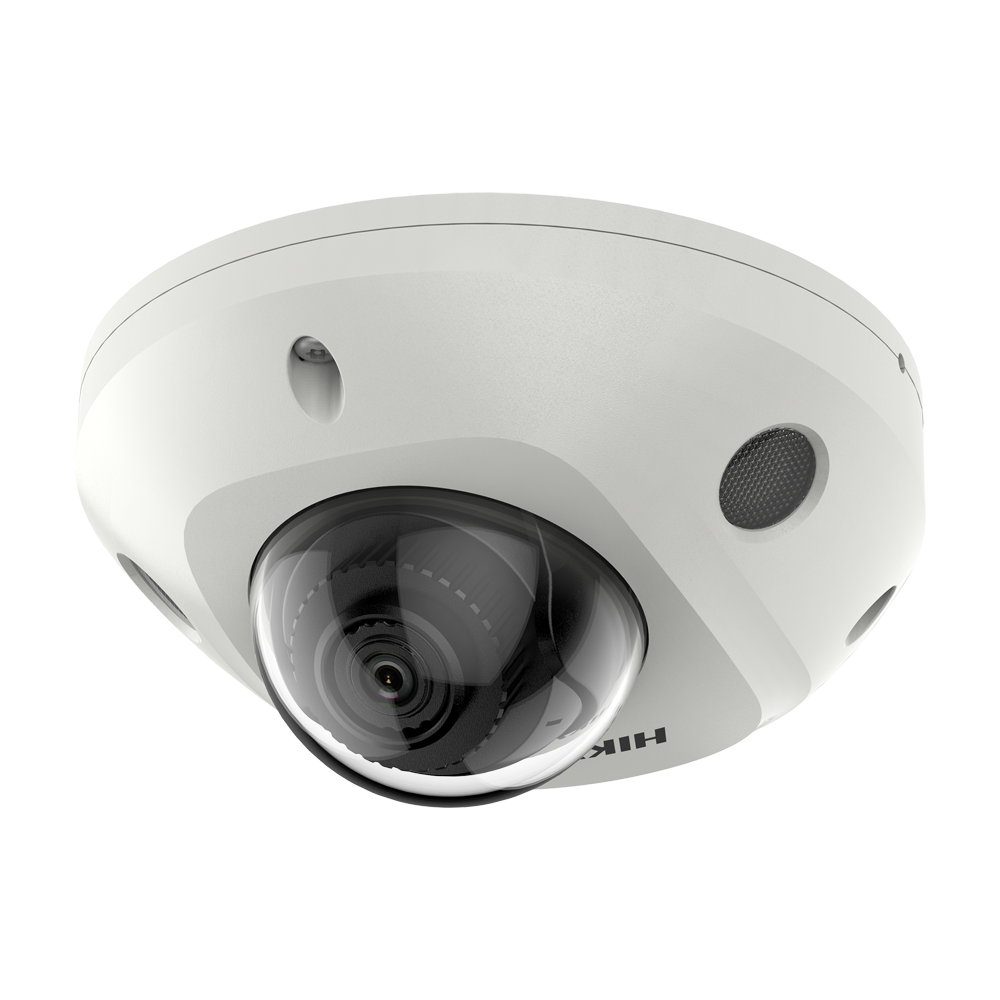

- IP Dome Camera
- 1/3″ Progressive Scan CMOS
- 4 Megapixel (2688×1520)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Ultra Low Light Powered by DarkFighter
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- AcuSense, false alarm filter for vehicles and persons (in line crossing and area intrusion)
- Face Capture
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- Integrated microphone
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Weatherproof IP67
- Vandal proof IK08
