Specifications
| Brand | HIKVISION |
| Range | PRO |
| Image sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840×2160) |
| Main Stream rate | 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) [%VAR%] * (The third stream is only available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 108.8°, V: 56.4°, D: 134.3° |
| Range performance | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Minimum illumination | Colour: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light: IR Range 30 m White light range 30 m |
| Day/Night | ColorVu: Color image 24 hours |
| Alarms | 1 input / 1 output |
| Deterrent alarm | Siren and strobe flash integrated in the camera |
| Audio | 1 input / 1 output Built-in microphone and speaker |
| Audio type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Image improvements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| Intelligent functions | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry, and Area Exit. * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| Facial Recognition | Face Capture * Motion detection 2.0, Facial recognition and AcuSense cannot be enabled at the same time. Enabling one function will disable the other 2 functions |
| Internal memory | MicroSD card slot up to 512 GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 750 mA / 9 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67 |
| Material | Metallic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm × 115.4 mm (Al) |
| Base dimensions | Ø base 138.3 mm / Ø between bolts 96 mm / 3 bolts |
| Weight | 820 g |
Description
- Hikvision
- PRO Range

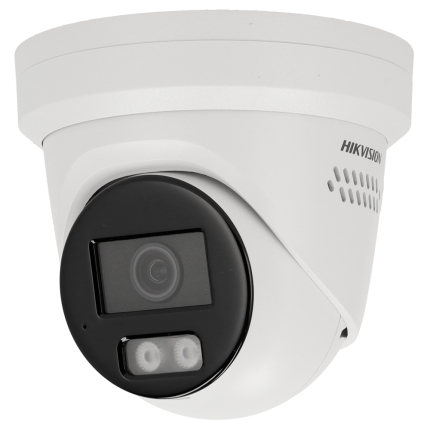

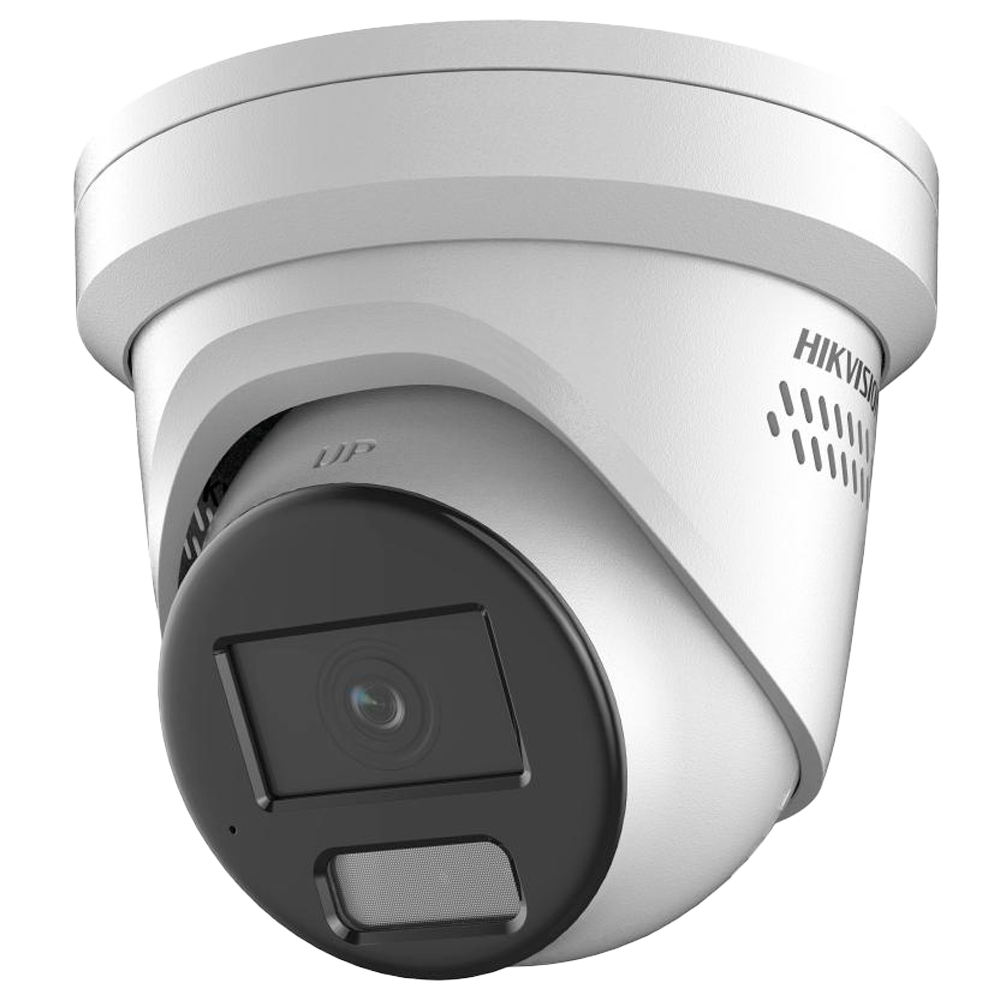

- Turret IP Camera
- 1/1.8″ Progressive Scan CMOS
- 8 Megapixel (3840×2160)
- 2.8 mm Lens
- 0 Lux
- Hybrid light: IR and white light -Hybrid light range 30 m
- ColorVu: color image 24 hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and persons (in Crossing Line, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D DNR
- Built-in microphone and speaker
- Alarms
- Audio
- Siren and deterrent flash
- MicroSD card slot up to 512 GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
- Eco Friendly Packaging
